ZXJD-750 Automatic High Speed Point Tooth Food Paper Bag Making Machine

Description

ZXJD-750 Automatic High Speed Point Tooth Food Paper Bag Making Machine is a high-speed and efficient food paper bag manufacturing machine. This machine adopts advanced technology and high-quality materials, and can quickly produce various specifications and types of food paper bags, which are widely used in food.

ZXJD-750 Automatic High Speed Point Tooth Food Paper Bag Making Machine has many advantages, such as high speed, high efficiency, high degree of automation, high precision, and simple operation. The entire process is completed by a human-machine interface PLC, with fully automatic feeding, photoelectric correction, and tension control. The use of this machine can greatly improve production efficiency, reduce waste of manpower, time, and material resources, while also ensuring the quality and accuracy of the food paper bags produced, improving the production quality and efficiency of enterprises.

Main Technical Parameters

Model	ZXJD-750

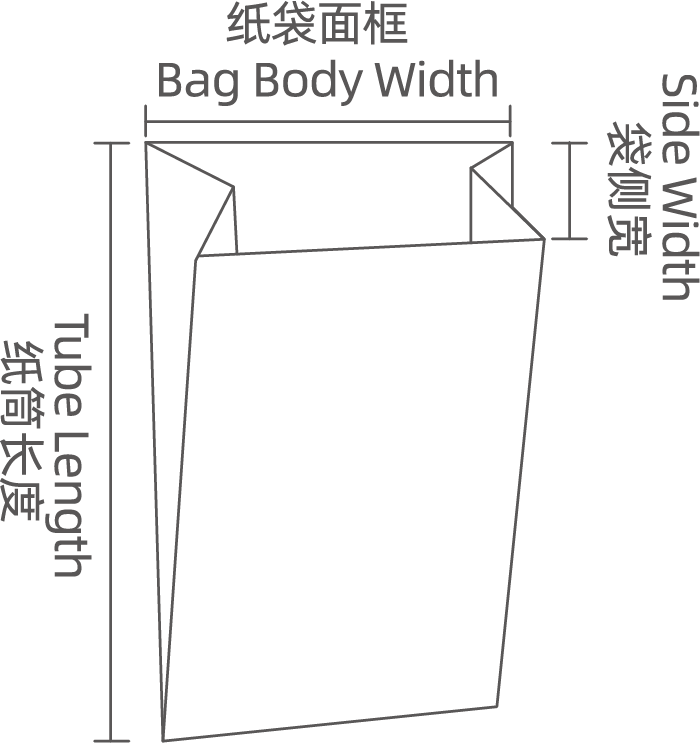

Length Of Cutting Bag	150-750mm
Bag Width	80-320mm
Insert Size	20-140mm
Bag Mouth Height	15/20mm
Bag Speed	50-600pcs/min
Paper Feed Width	200-920mm
Paper Material Diameter	200-1000mm
Paper Material Thickness	40-80g/m²
Working Air Current	≥012m³/分钟，0.6-1.2 Morethan 0.12m³/minutes,0.6-1.2MPa
Electric Power	380V3415kw 380V3 phase 4 wire 15kw
Total Weight	4000kg
Machine Dimension(L×W×H)	7500×1700×2100mm

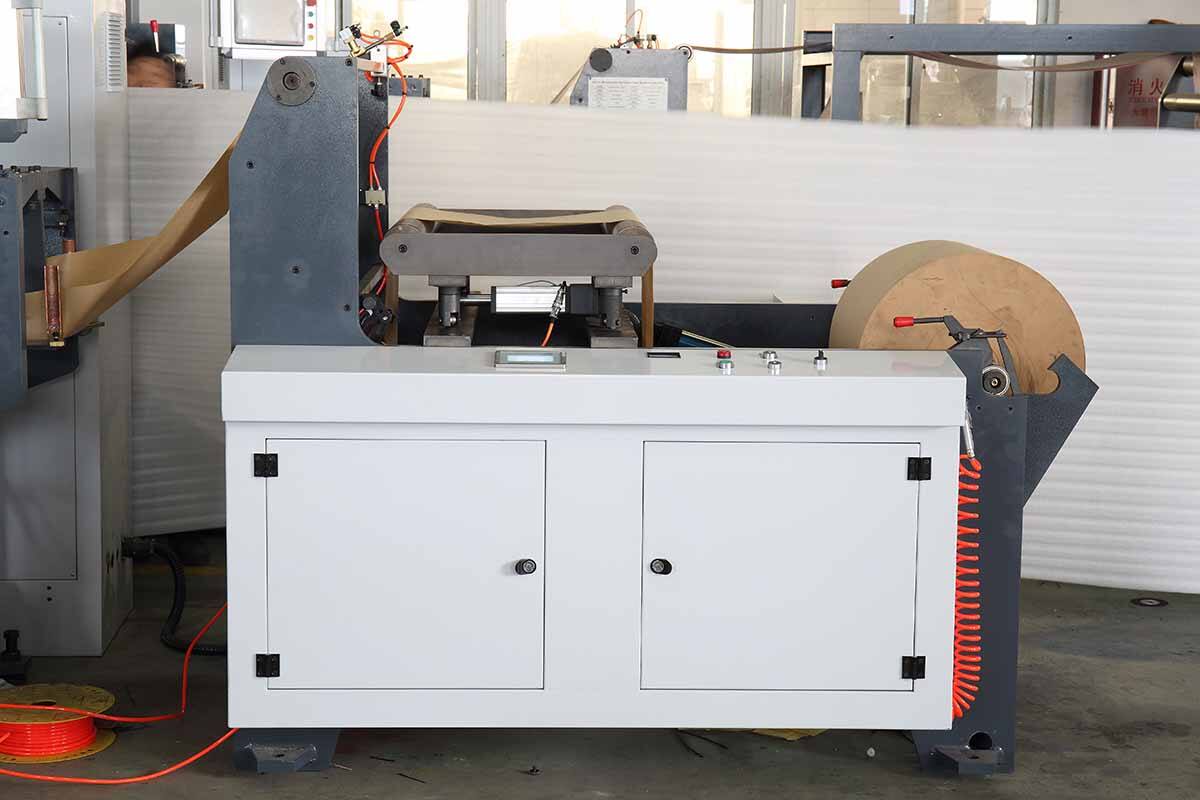

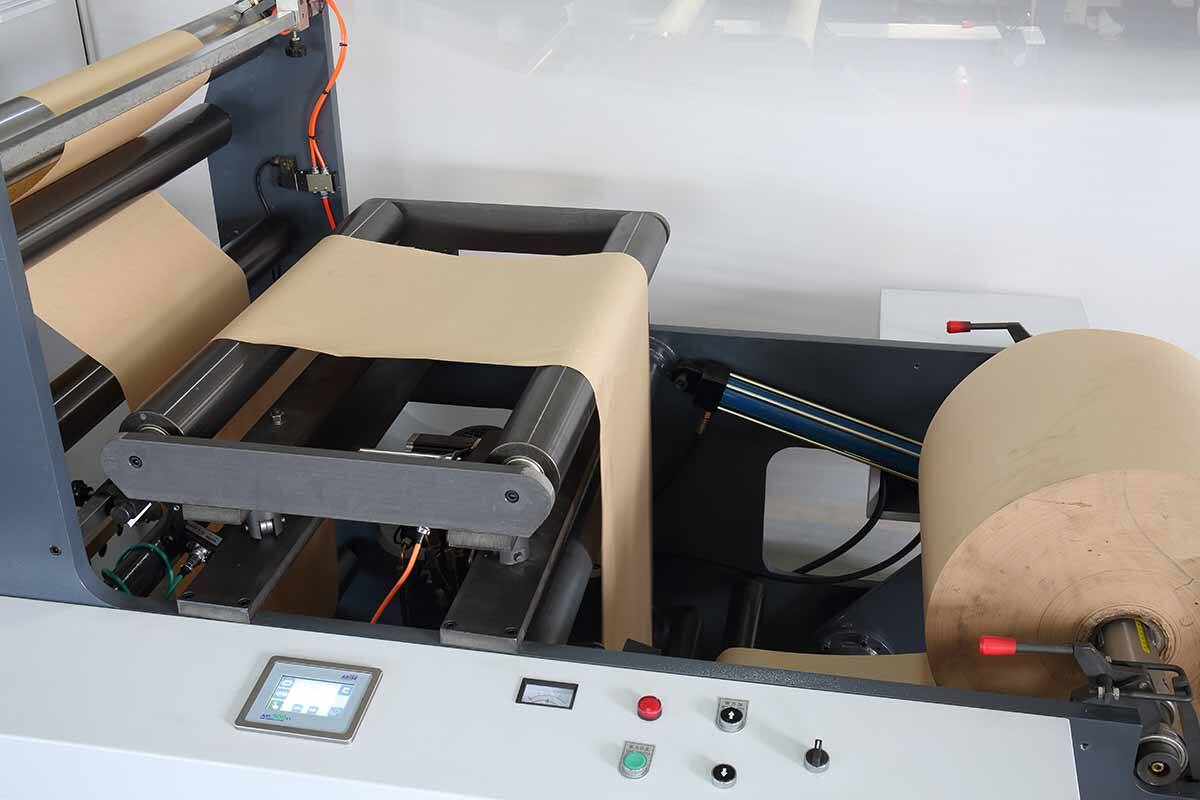

Feeding Section	Feeding Section	Computer

Inserted Edge Wheel and Plug Side Dish	hydrualic pump	Bag Bottom Closure Device

Receive Bag Part	Receive Bag Part	Printing Machine（Optional）

Product Features

1.It is suitable for paper between 40-80gsm.

2.It can control bag length through human-machine interface.

3.The PLC system can calculate parameters correctly.

4.It is equipped with an accurate photocell system.

5.Cut by the point cutter.

FAQ

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
