JYD-400/650/850 Computer Mechanical High Speed Sharp Bottom Paper Bag Making Machine

Description

JYD-400/650/850 computer mechanical high speed sharp bottom paper bag making machine is used to apply adhesive to the side edges, fix the length of the color code (or fixed length), cut the fixed length, glue the bottom, fold the bottom to form, and remove the bag from the original color or printed roll paper. This machine is controlled by a computer and programmed with servo motors, making it easy to operate, efficient in production, and stable in operation. It is a specialized paper bag machine for producing environmentally friendly paper bags of various specifications and sizes, such as pointed bottom paper bags, windowed bread bags, leisure food bags, dried fruit bags, and more.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (4).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (1).png

Main Technical Parameters

Model	JYD-400	JYD-650	JYD-850
Bag Weight	40-80g/m²	40-80g/m²	40-80g/m²

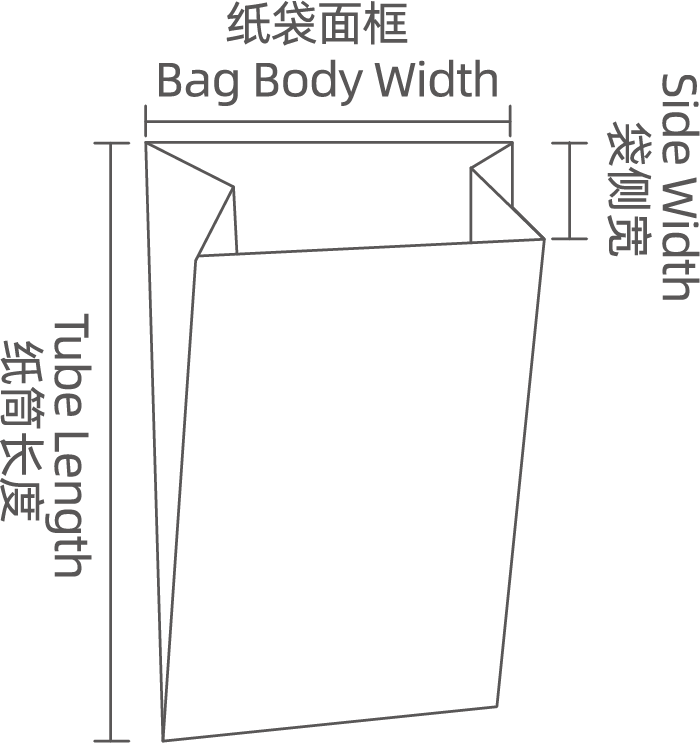

Tube Length	160-450mm	200-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-500bags/min	100-400bags/min	100-400bags/min
Weight	1600kg	1800kg	2000kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size(L×W×H)	4200x1500x1800mm	4300x1600x1900mm	4500x1700x1900mm

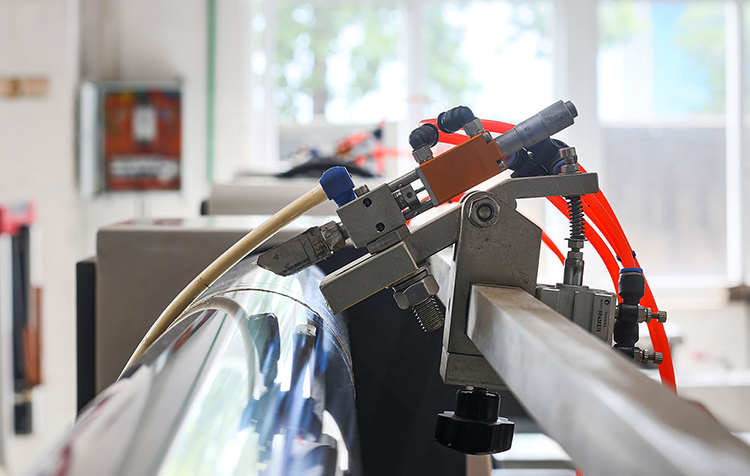

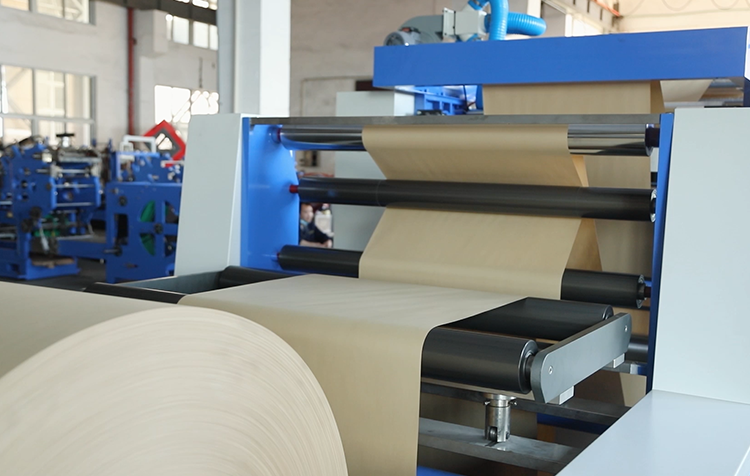

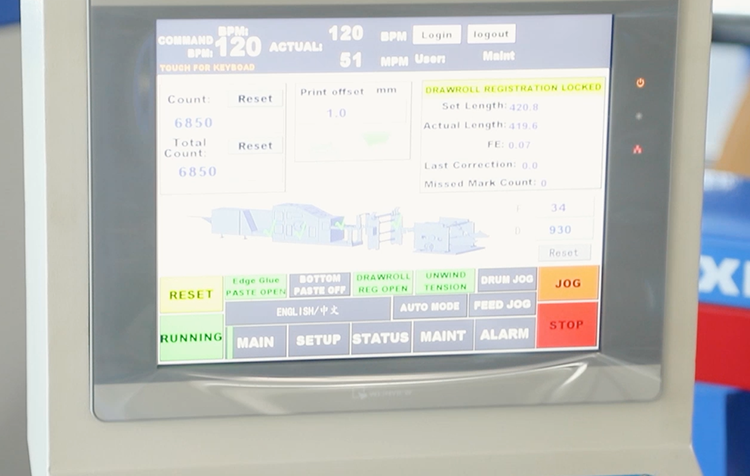

Feeding Section	glue gun	Computer

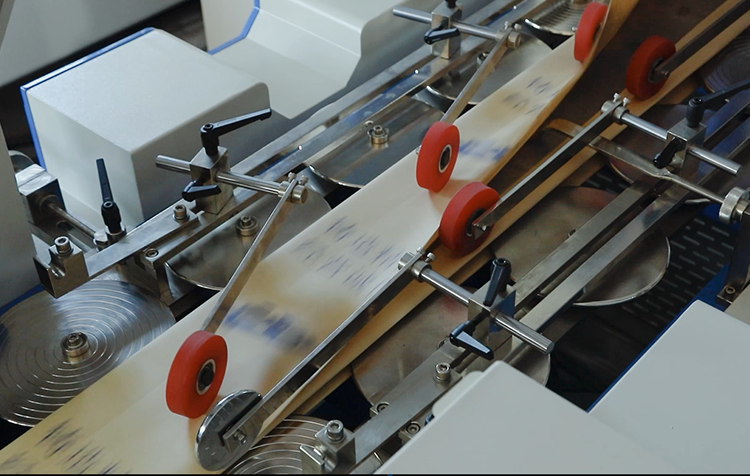

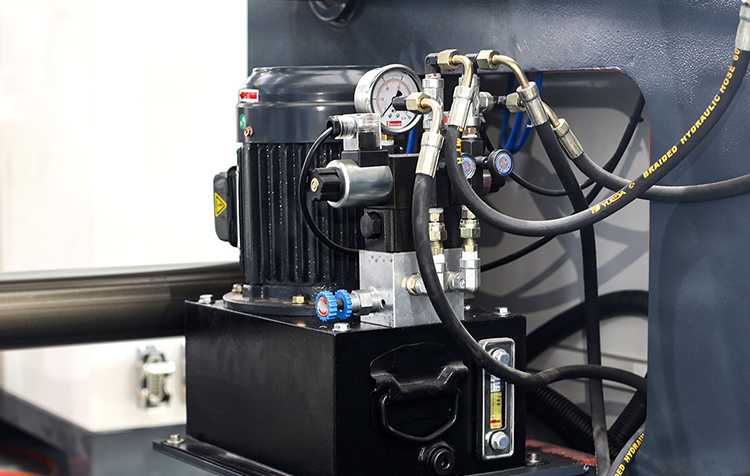

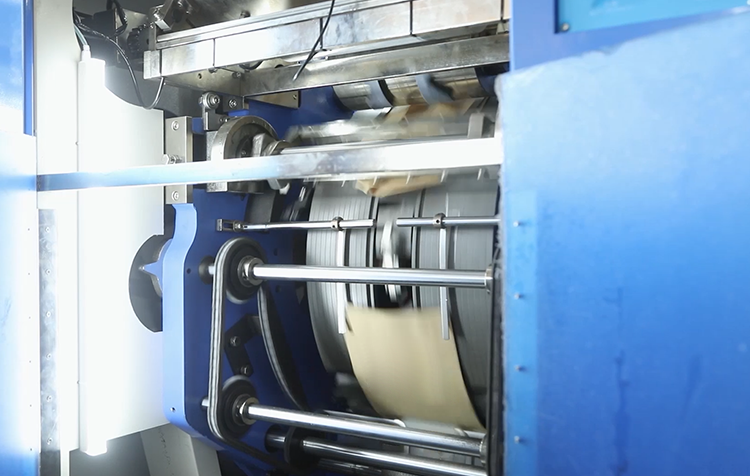

Inserted Edge Wheel and Plug Side Dish	hydrualic pump	Bag Bottom Closure Device

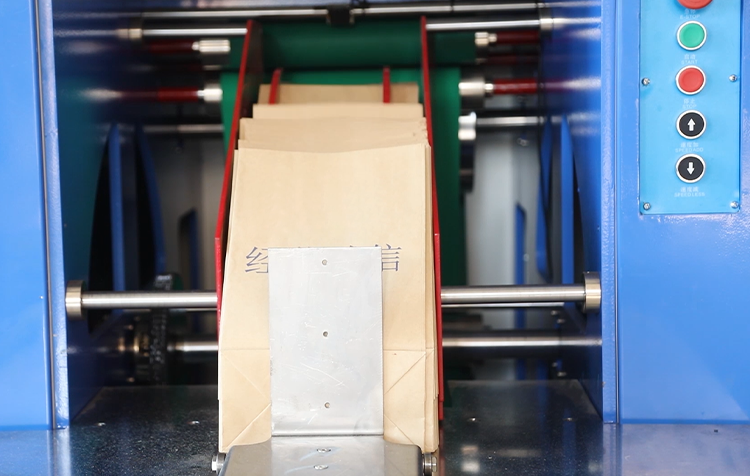

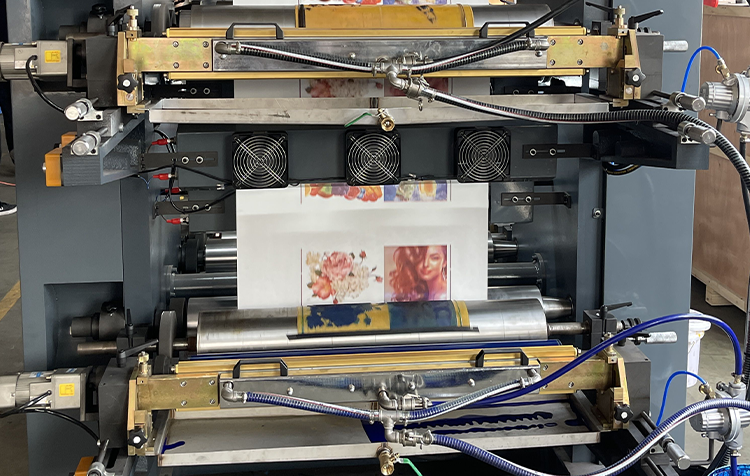

Receive Bag Part	Receive Bag Part	Printing Machine（Optional）

Product Features

1. Suitable for various types of paper weighing 40-80 grams

2. Adjust the bag length through the human-machine interface

3. The servo system PLC controls any length of the bag within a certain range

4. Accurate color code tracking system

FAQ

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
