JD-400/650/850/YT Automatic High Speed Paper Bag Making Machine With Printing Machine Inline

JD-400/650/850/YT automatic high speed paper bag making machine with printing machine inline is the latest disposable forming pointed bottom paper bag machine integrated printing developed by our factory by absorbing advanced technologies at home and abroad. It connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before bag making, reducing labor costs, and also reducing user investment costs. Generally, monochrome, two-color, tri color, and four-color printing can be connected.

  • Description
  • Main Technical Parameters
  • Product Features
  • FAQ
  • Contact
Please contact us to serve you!

Please contact us to serve you!

Inquiry

JD-400/650/850/YT automatic high speed paper bag making machine with printing machine inline is the latest disposable forming pointed bottom paper bag machine integrated printing developed by our factory by absorbing advanced technologies at home and abroad. It connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before bag making, reducing labor costs, and also reducing user investment costs. Generally, monochrome, two-color, tri color, and four-color printing can be connected.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (4).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (1).png Zhejiang-Zhuxin-Machinery-Co-Ltd-.png

Model

JD-400

JD-650

JD-850

Paper Weight

40-80g/m2

40-80g/m2

40-80g/m2

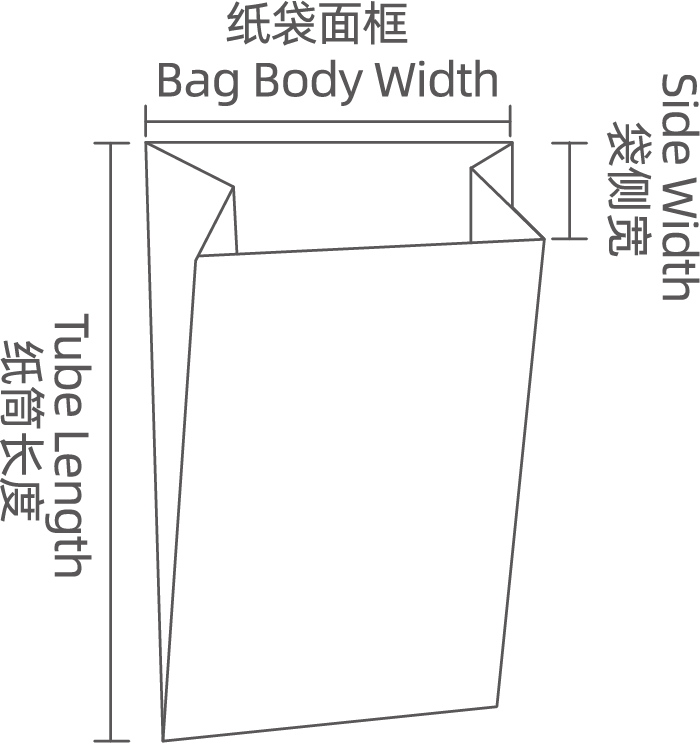

Bag Length

160-420mm

220-650mm

220-850mm

Bag Width

70-260mm

70-300mm

80-350mm

The Width Of Paper Roll

260-720mm

260-840mm

260-960mm

Machine Speed

60-400pcs/min

60-400pcs/min

60-400pcs/min

Paper Bag Insert

20-120mm

20-120mm

20-120mm

Machine Power

8kw

8kw

8kw

Machine Total Weight

3000kg

4200kg

5200kg

Machine Dimension(LxWxH)

7000x2100x1900mm

7500x2200x2000mm

7800x2300x2000mm

Model

YT-800

YT-1000

YT-1100

Max Width Substrate

800mm

1000mm

1100mm

Max Printing Width

760mm

960mm

1060mm

Range Of Printing Length

228-1000mm

228-1000mm

228-1000mm

Printing Speed

5-100m/min

5-100m/min

5-100m/min

Register Precision

≤±0.20mm

≤±0.20mm

≤±0.20mm

Plate Thickness

2.28mm

2.28mm

2.28mm

Total Power

16kw

16kw

19kw

Weight

1500kg

1600kg

1700kg

Machine Size(LxWxH)

2000x2000x2300mm

2000x2200x2300mm

2000x2400x2300mm

Remark:Two colors、Four colors、Six colors

1.Feeding Section.png 2.glue gun.png 3.Computer.png
Feeding Section Feeding Section Computer
4.Inserted Edge Wheel and Plug Side Dish.png 5.hydrualic pump.png 6.Bag Bottom Closure Device.png
Inserted Edge Wheel and Plug Side Dish hydrualic pump Bag Bottom Closure Device
7.Receive Bag Part.png 8.EPC(Optional).png 9.Printing Machine(Optional).png
Receive Bag Part Receive Bag Part Printing Machine(Optional)

1. Suitable for various types of paper weighing 40-80 grams

2. Adjust the bag length through the human-machine interface

3. The servo system PLC controls any length of the bag within a certain range

4. Accurate color code tracking system

5. Use a toothed knife to break it

6. Automatic counting and marking function, when the set quantity is reached, the paper bag will automatically pop out.

7. Ink circulation closed scraper for ink scraping.

8. The ink transfer adopts ceramic mesh rollers, which have high dot reproduction rate during high-speed operation, clear layers in screen printing, and strong three-dimensional effect.

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
