JYS-400/650/850 Mechanical Paper Bag Making Machine With Printing Online

Description

JYS-400/650/850 mechanical paper bag making machine with printing online connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before making bags, improving production efficiency, and reducing labor costs. Generally, two-color, four-color, and six color printing can be connected.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (4).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (1).png

Main Technical Parameters

Model	JYS400	JYS650	JYS850
Bag Weight	40-80g/m²	40-80g/m²	40-80g/m²

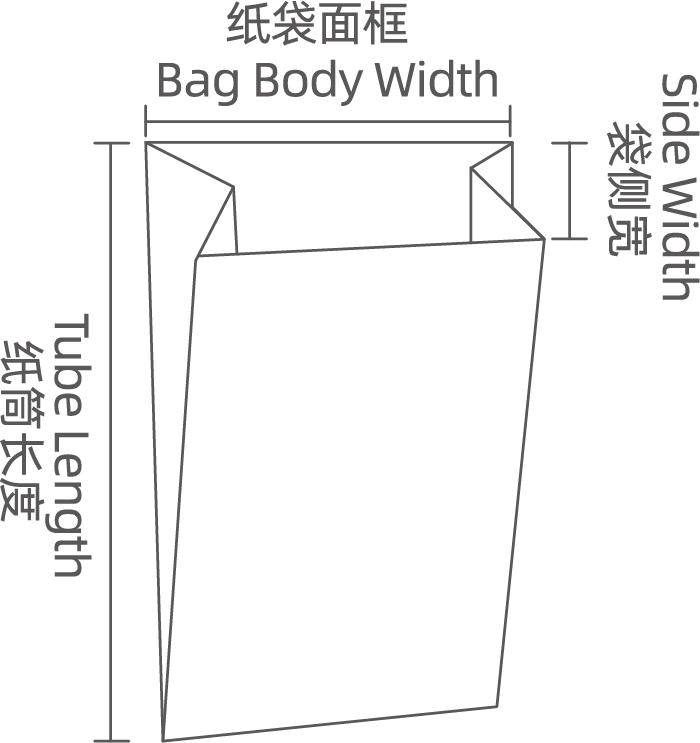

Tube Length	160-450mm	200-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-400bags/min	100-400bags/min	100-400bags/min
Weight	2200kg	2400kg	2600kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size(L×W×H)	6280x1500x1800mm	6300x1600x1900mm	6500x1700x1900mm
Model	YT-800	YT-1000	YT-1100
Max Width Substrate	800mm	1000mm	1100mm
Max Printing Width	760mm	960mm	1060mm
Range Of Printing Length	228-1000mm	228-1000mm	228-1000mm
Printing Speed	5-100m/min	5-100m/min	5-100m/min
Register Precision	≤±0.20mm	≤±0.20mm	≤±0.20mm
Plate Thickness	2.28mm	2.28mm	2.28mm
Machine Size(LxWxH)	2000x2000x2300mm	2000x2200x2300mm	2000x2400x2300mm
Remak/备注：Two colors、Four colors、Six colors


Feeding Section	Feeding Section	Computer

Inserted Edge Wheel and Plug Side Dish	hydrualic pump	Bag Bottom Closure Device

Receive Bag Part	Receive Bag Part	Printing Machine（Optional）

Product Features

1. Suitable for various types of paper weighing 40-80 grams

2. Adjust the bag length through the human-machine interface

3. The servo system PLC controls any length of the bag within a certain range

4. Accurate color code tracking system

5. Use a toothed knife to break it

6. Ink circulation closed scraper for ink scraping.

7.The ink transfer adopts ceramic mesh rollers, which have high dot reproduction rate during high-speed operation, clear layers in screen printing.
