JD-400/650/850 High Speed Food Bag Making Machine

Description

JD-400/650/850 high speed food paper bag making machine has the advantages of fast speed, high production efficiency, and wide adjustment range. This paper bag machine completes the folding, forming, bag cutting, gluing, bottom folding, bottom pasting, and finished bag output of roll paper in one go. The entire machine is controlled by a computer central control system, displayed on a touch screen, and controlled by servo motors to control the length of paper bags. The entire process is completed by the human-machine interface PLC, which has fully automatic feeding, photoelectric correction, and tension control. It is currently the ideal equipment for producing eco-friendly paper bags such as snack bags, bread bags, vomit bags, dried fruit bags, etc. both domestically and internationally.

Main Technical Parameters

Model	JD-400	JD-650	JD-850
Paper Weight	40-80g/m²	40-80g/m²	40-80g/m²

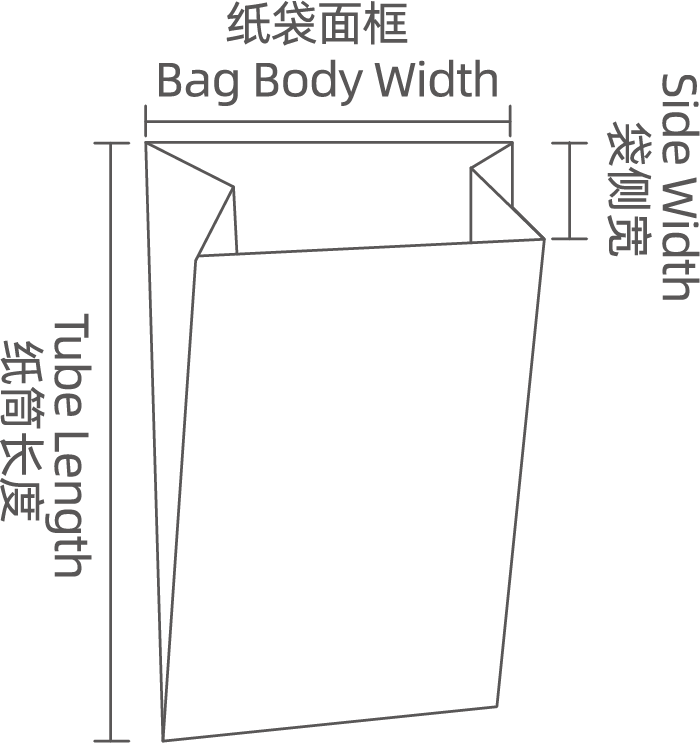

Bag Length	160-420mm	220-650mm	220-850mm
Bag Width	70-260mm	80-300mm	80-350mm
Paper Bag Insert	20-120mm	20-120mm	20-120mm
The Width Of Paper Roll	260-720mm	260-840mm	260-960mm
Machine Speed	60-400pcs/min	60-400pcs/min	60-400pcs/min
Machine Power	10kw	10kw	10kw
Machine Total Weight	3000kg	4200kg	5200kg
Machine Dimension(LxWxH)	2100x4500x1900m	2100x5000x2000mm	2100x5300x2000mm


Feeding Section	Feeding Section	Computer

Inserted Edge Wheel and Plug Side Dish	hydrualic pump	Bag Bottom Closure Device

Receive Bag Part	Receive Bag Part	Printing Machine（Optional）

Product Features

1.It is suitable for paper between 40-80gsm2.lt can control bag length through human-machine interface.

3.The PLC system can calculate parameters correctly.

4.It is equipped with an accurate photocell system.

FAQ

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
