JYS-400/650/850 Mechanical Paper Bag Making Machine

Description

JYS-400/650/850 mechanical paper bag making machine is an efficient and automated equipment that can complete the folding, forming, bag cutting, gluing, bottom folding, bottom pasting, and finished bag output of roll paper in one go. It is mainly used for producing pointed bottom paper bags and is suitable for various food packaging needs. Equipped with a touch screen human-machine interface, PLC programmable control system, precise color code tracking system, and automatic lubrication and oil supply system. The equipment is widely used in the food packaging industry, especially suitable for the production of various food paper bags, such as chestnut bags, fried chicken bags, hamburger bags, hand held cake bags, small ball bags, Tomatoes on sticks bags, beef jerky bags, etc.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (4).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (1).png

Main Technical Parameters

Model	JYS-400	JYS-650	JYS-850
Bag Weight	40-80g/m²	40-80g/m²	40-80g/m²

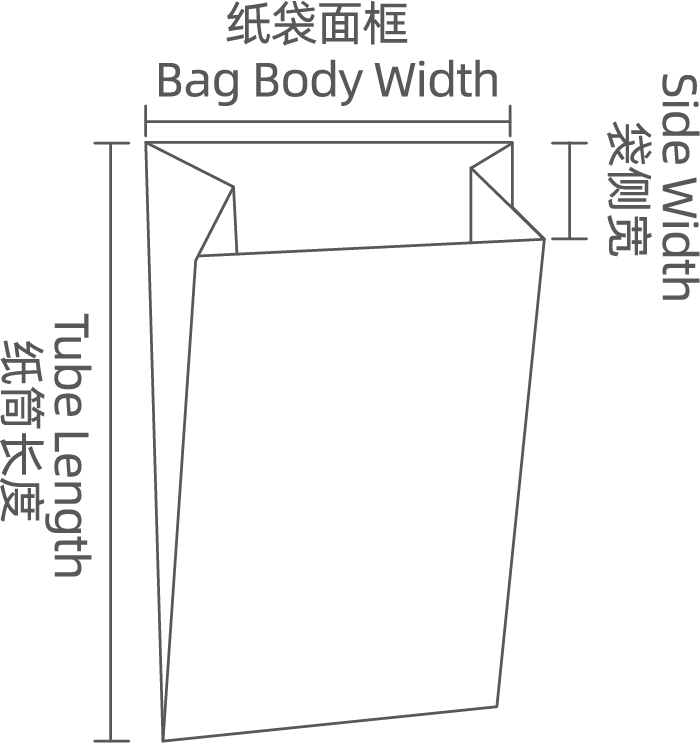

Tube Length	160-450mm	200-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-500bags/min	100-400bags/min	100-400bags/min
Weight	1600kg	1800kg	2000kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size(L×W×H)	4200x1500x1800mm	4300x1600x1900mm	4500x1700x1900mm


Feeding Section	Feeding Section	Computer

Inserted Edge Wheel and Plug Side Dish	hydrualic pump	Bag Bottom Closure Device

Receive Bag Part	Receive Bag Part	Printing Machine（Optional）

Product Features

1.It is suitable for paper between 40-80gsm.

2.It can change and control bag length through gear.

3.Change bag length within a certain range through high speed gear.

FAQ

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
