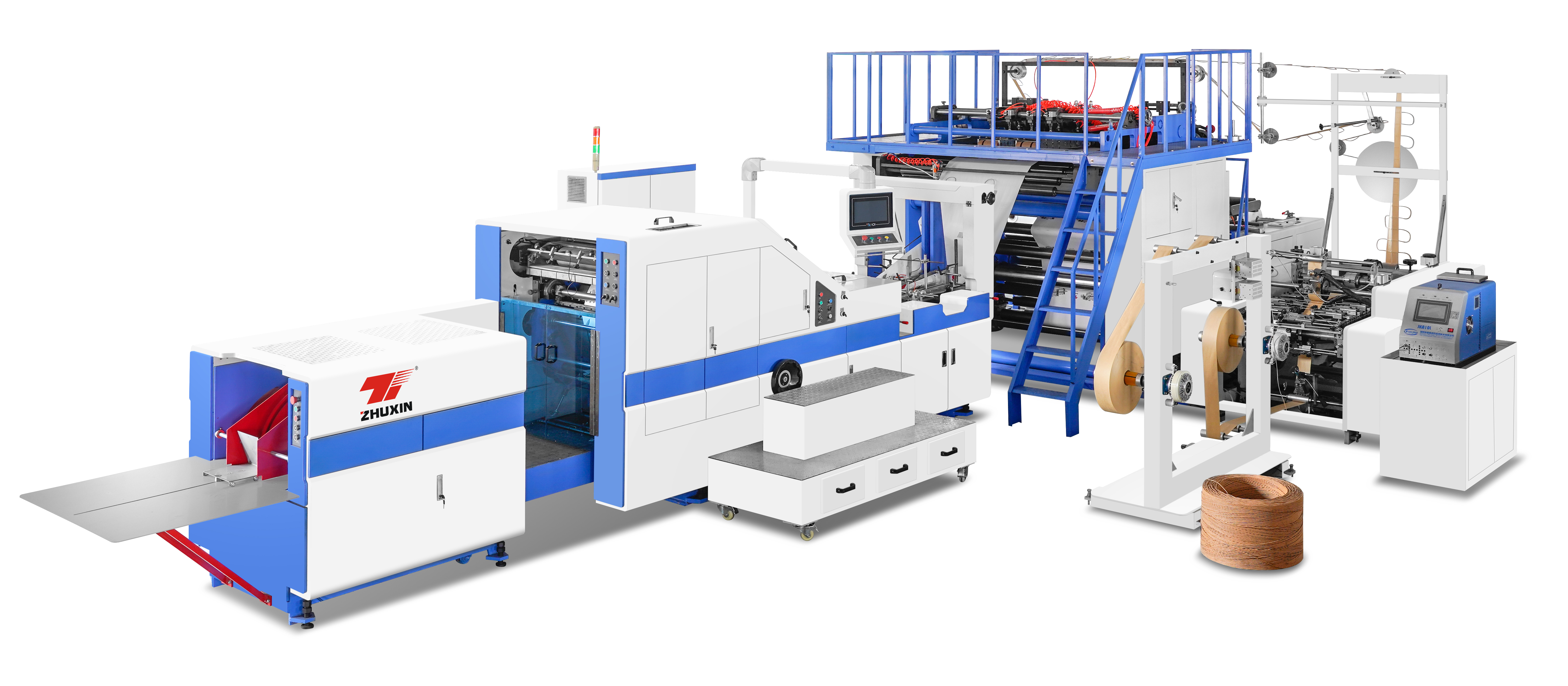

FULLY AUTOMATIC SQAURE BOTTOM PAPER BAG MACHINE INLINE HANDLE ATTACHING

Description

Fully-automatic paper bag machine is used to produce hand-held paper bags by using roll paper as raw material, combined with hand-held paper pieces and paper ropes. The machine adopts PLC and motion controller, servo drive control system, intelligent operation interface, high production speed, high efficiency, is the ideal equipment for the production of food, cosmetics, wine, gifts and clothing bags.

The production process: drum feeding, stick handle, tube forming, cutting, bottom indentation, bottom gluing, bag bottom forming and output.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (2).png

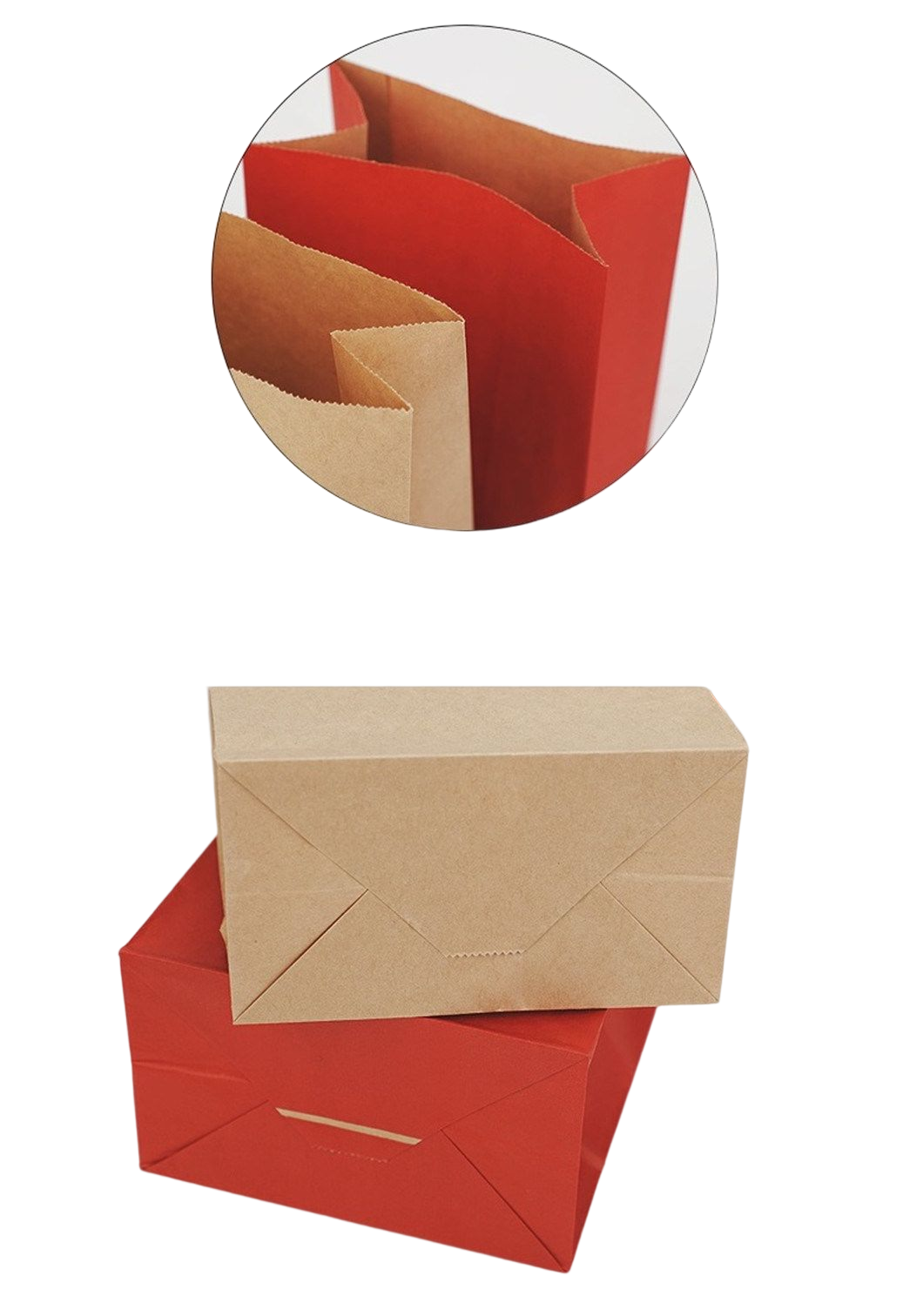

Zhejiang-Zhuxin-Machinery-Co-Ltd- (3).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (6).png

Zhejiang-Zhuxin-Machinery-Co-Ltd- (10).png

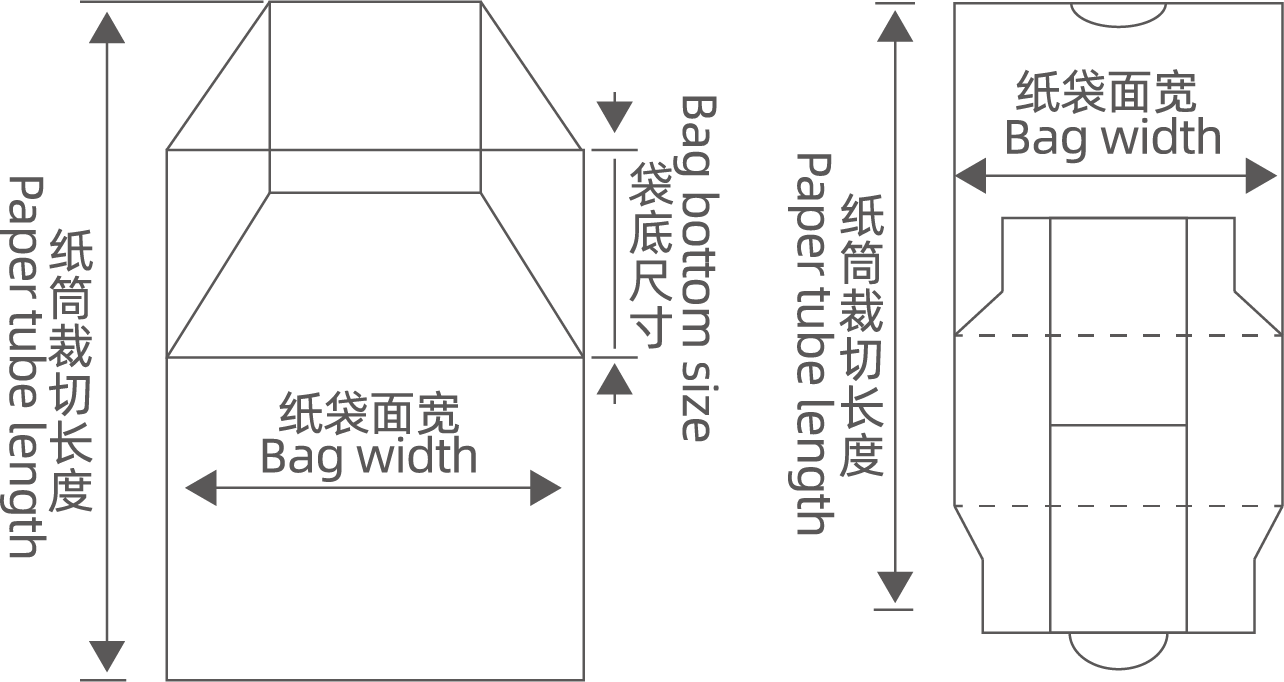

Main Technical Parameters

BAG MACHINE MODEL	CY-180	CY-290	CY-330	CY-460
Paper diameter	≤1300mm	≤1300mm	≤1300mm	≤1300mm
Core inner diameter	Φ76mm	Φ76mm	Φ76mm	Φ76mm
Paper weight	45-130g	80-150g	80-150g	80-150g
Paper bag width (with handle)	120-180mm	120-280mm	200-330mm	250-400mm
Paper bag width (without handle)	80-180mm	120-280mm	140-330mm	220-460mm
Paper tube length (With handle)	191-330mm	191-330mm	260-530mm	280-500mm
Paper tube length (Without handle)	191-430mm	191-430mm	260-430mm	280-600mm
Bottom width	50-120mm	50-120mm	60-180mm	90-200mm
Machine speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min
Total power	32KW	32KW	23/42KW	34KW
Machine weight (with handle)	13000KG	13000KG	16000KG	18000KG
Machine weight (without handle)	7000KG	8000KG8	9000KGS	10000KG
Machine dimension(with handle)	12×5×2.5 M	12×5×2.5 M	11×2.6×1.8M	15×5×2.5 M
Machine dimension(without handle)	12×5×2.5 M	12×5×2.5 M	14×6×3 M	15×5×2.5 M

HANDLE MODEL	114DH	152DH	152HD	190HD
Handle rope height(mm)	102/115/ 125/140	102/115/ 125/140	102/115/ 125/140	115/125/ 140/150
Handle patch width	45-50 mm	45-50 mm	45-50mm	45-50mm
Handle patch length	114.3 mm	114.3mm	152.4 mm	190.5 mm
Handle rope diameter	Φ4-6mm	Φ4-6mm	Φ4-6mm	Φ4-6mm
Dia. of handle patch paper roll	Φ1200mm	Φ1200mm	Φ1000mm	Φ1200mm
Handle patch paper roll width	90-100mm	90-100mm	90-100mm	90-100mm
Handle patch weight	100-120g	100-120g	100-120g	100-120g

MAIN PARTS AND ORIGIN

NO.	DESRIPTION	ORIGIN	BRAND
1	MOTION CONTROLLER /SERVO MOTOR	JAPAN	MITSBISHI
2	INVERTER	JAPAN	MITSBISHI
3	BUTTON	FRANCE	SCHNEIDER
4	RELAY	FRANCE	SCHNEIDER
5	AC CONTACTOR	FRANCE	SCHNEIDER
6	AIR SWITCH	FRANCE	SCHNEIDER
7	POWER SWITCH	FRANCE	SCHNEIDER
8	PHOTOCELL	GERMANY	SICK
9	Metal proximity switch	CHINA
10	CHAIN	CHINA
11	MIAN BEARING	JAPAN	NSK
12	HOT MELT GLUE MACHINE	CHINA
13	PAPER FEEDING BELT	CHINA
14	Synchronous belt	CHINA

FUNCTION COFIGURATION

1.Paper coil feeding

2.Paper automatic deviation correction

3.Paper tension self adjustment

4. Incision (hand rope)

5. Printing glue (handle)

6. Making handle

7. Pasting handle

8. Top glue

9. Tube forming

10. Cursor detection

11. Bag cylinder cutting

12. Bottom pulling

13. Printing glue (bottom)

14.Paper bag collection (batch counting)

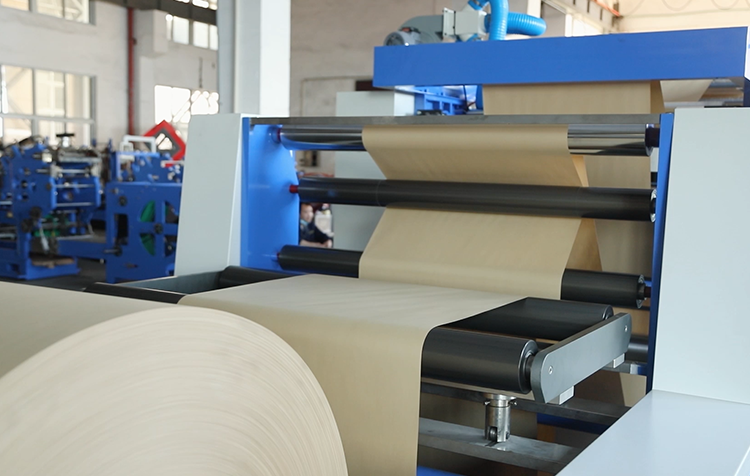

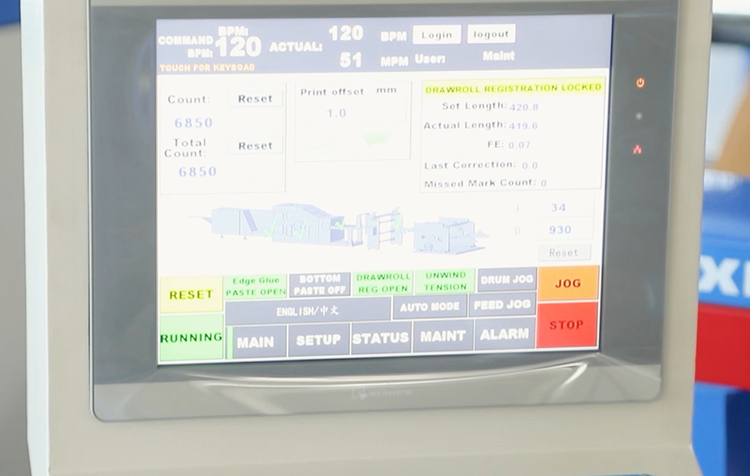

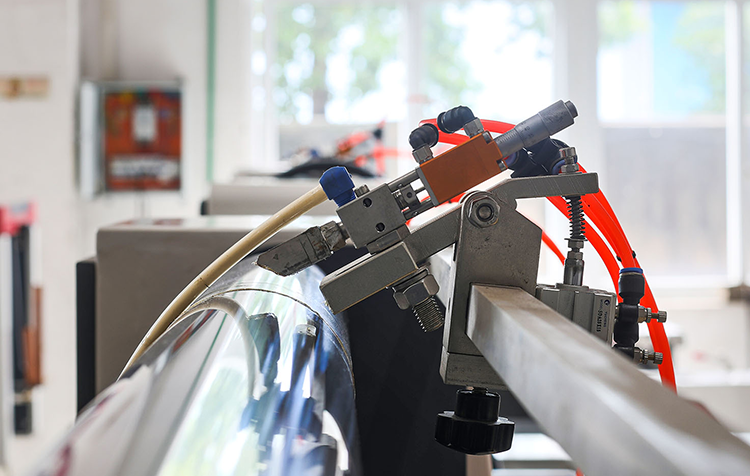

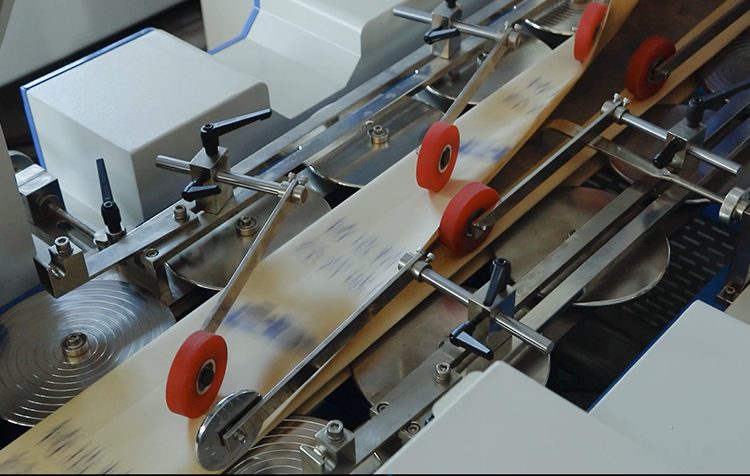

Feeding Section	glue gun	Computer	Inserted Edge Wheel and Plug Side Dish

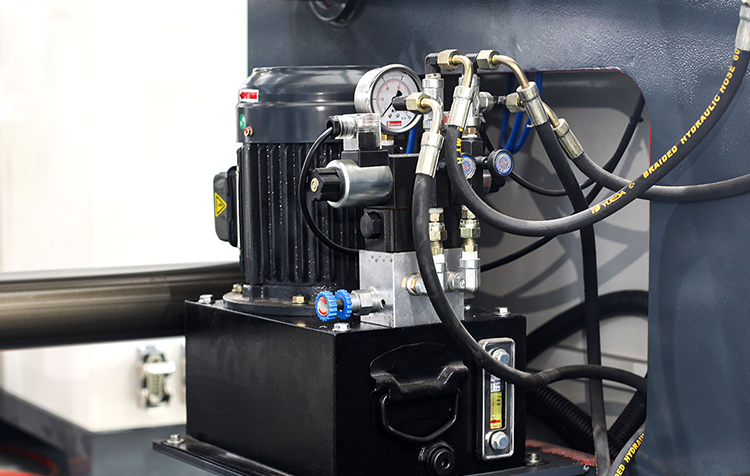

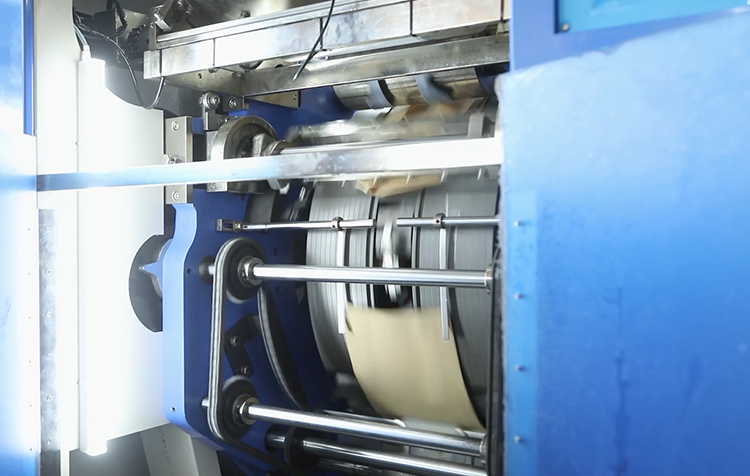

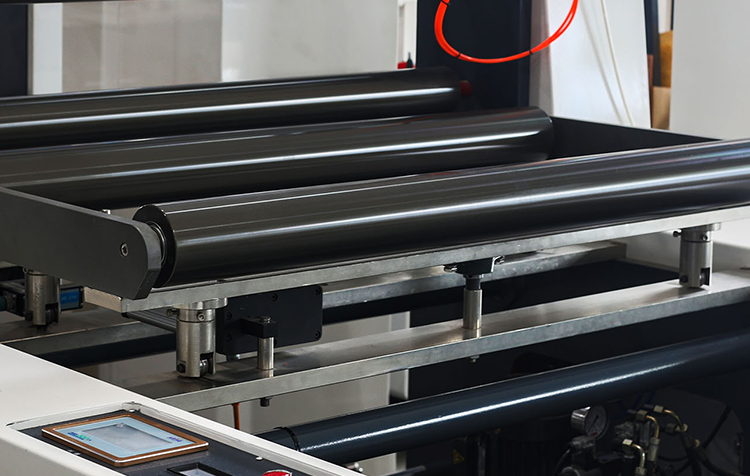

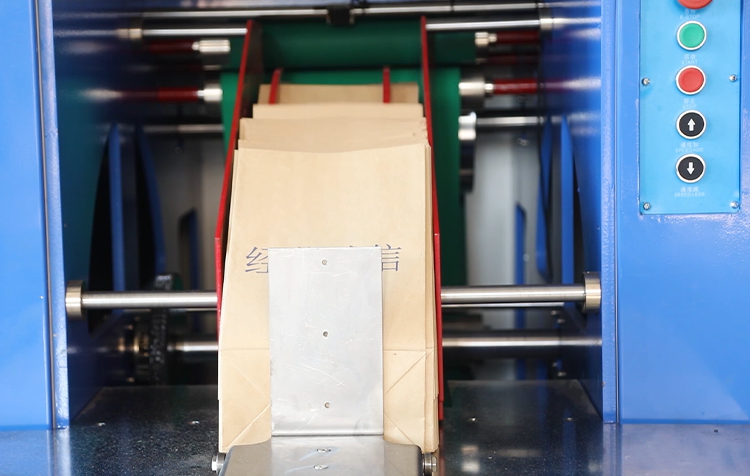

hydrualic pump	Bag Bottom Closure Device	Receive Bag Part	EPC（Optional）

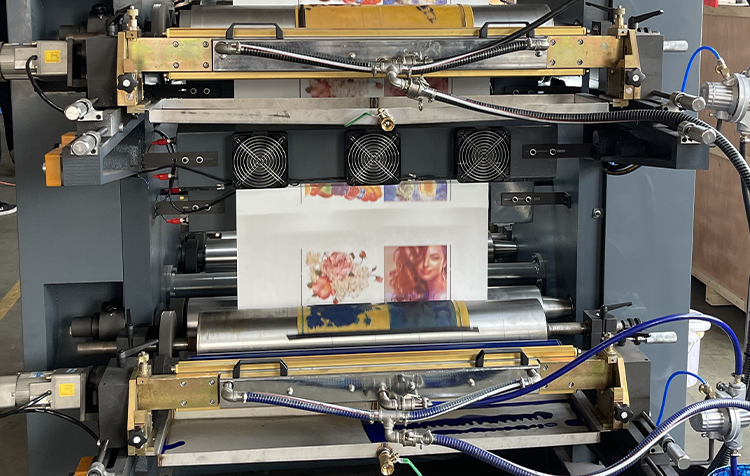

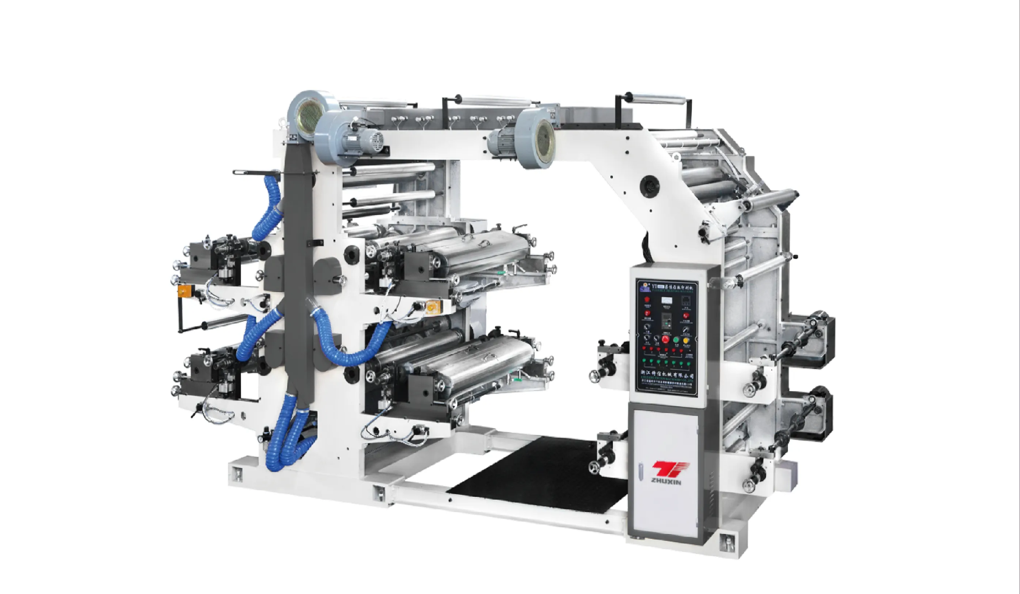

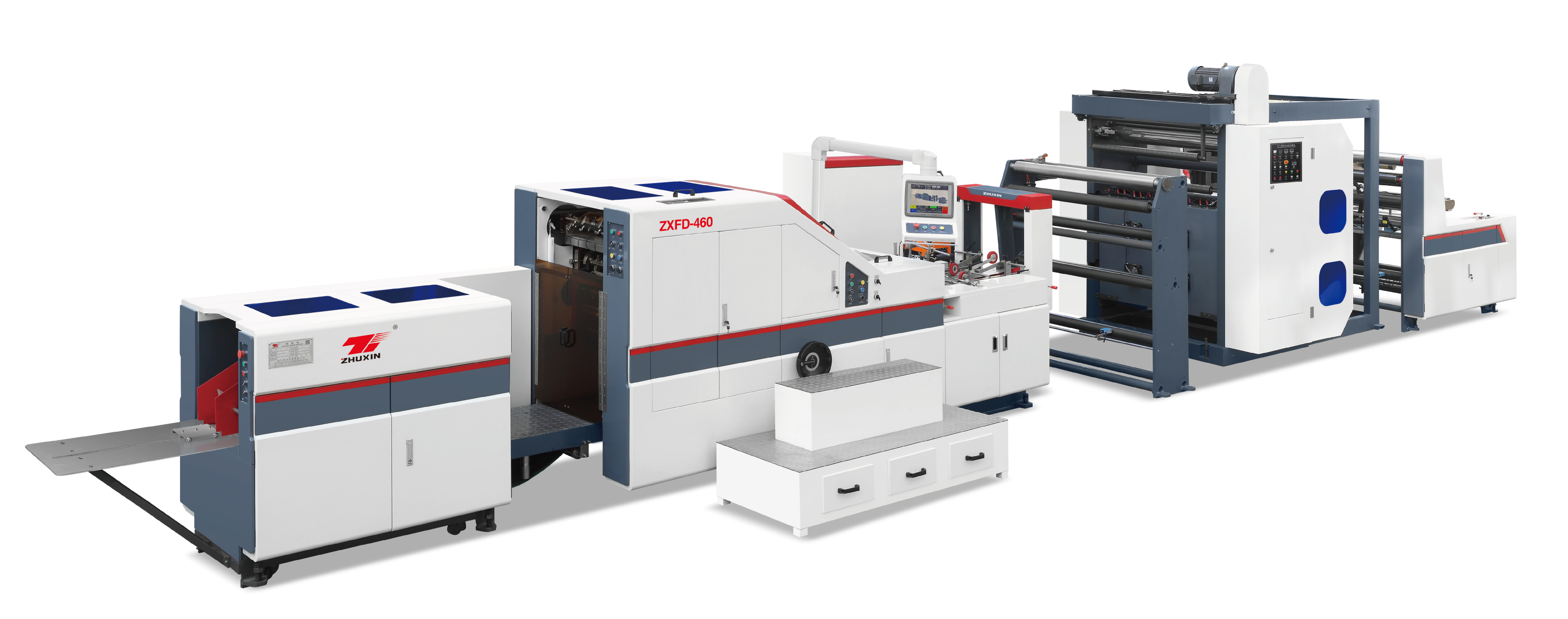

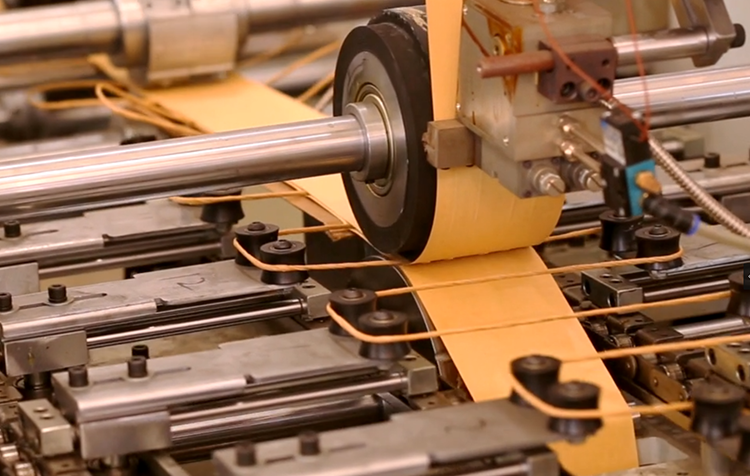

Printing Machine（Optional）		Handle Making Unit (Optional)

Product Features

01 The forming template adopts symmetrical adjustable double- template structure (proprietary technology), so that users of different sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and increase the machine capacity.

02 The special design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing extra-large hand-held paper bags.

03 The electronic control system from Japan is adopted to ensure stable and high-speed operation

04 Material loading adopts hydraulic automatic lifting structure, with automatic tension control.

05 material loading adopts ARISE EPC system, reduce material alignment time.
