Automatic Roll To Square Bottom Paper Bag Making machine

  • Description
  • Main Technical Parameters
  • Product Features
  • FAQ
  • Contact
Please contact us to serve you!

Please contact us to serve you!

Inquiry

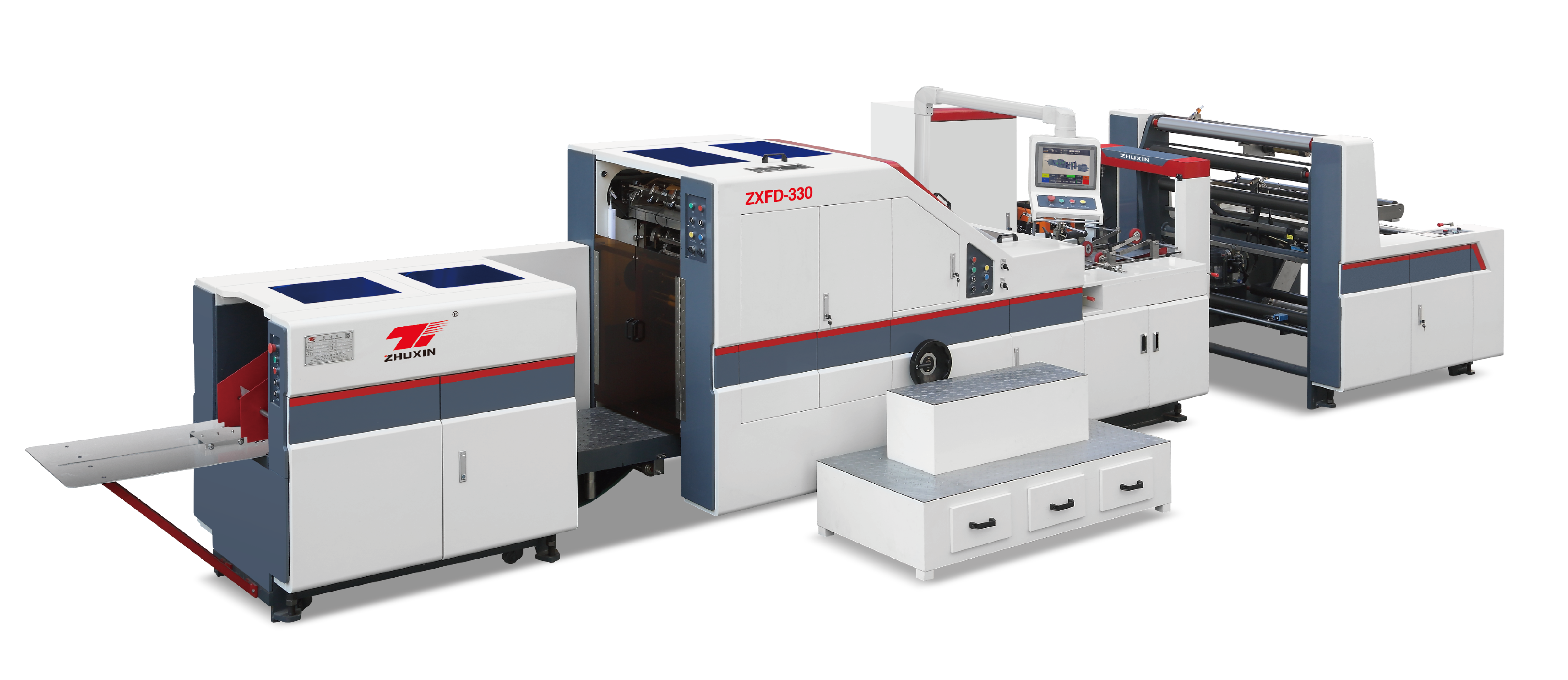

ZXFD-290/330/460 type adjustable roll to square bottom paper bag making machine, has the advantages of high speed, high production efficiency and wide adjustment range. it is designed to manufacture square bottom paper bags from paper roll in blank or printed, and can complete side gluing, tube forming,cutting, bottom impressing, bottom gluing, bottom forming and final product output within one time. Controlled by PLC system, equipped with touch screen and servo motor for bag length control, this machine can produce a variety of specifications paper bags. it is an ideal equipment for making paper bag for foodstuff bag or shopping bag.

Zhejiang-Zhuxin-Machinery-Co-Ltd- (2).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (3).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (5).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (6).png Zhejiang-Zhuxin-Machinery-Co-Ltd- (10).png

Model

ZXFD-290

ZXFD-330

ZXFD-460

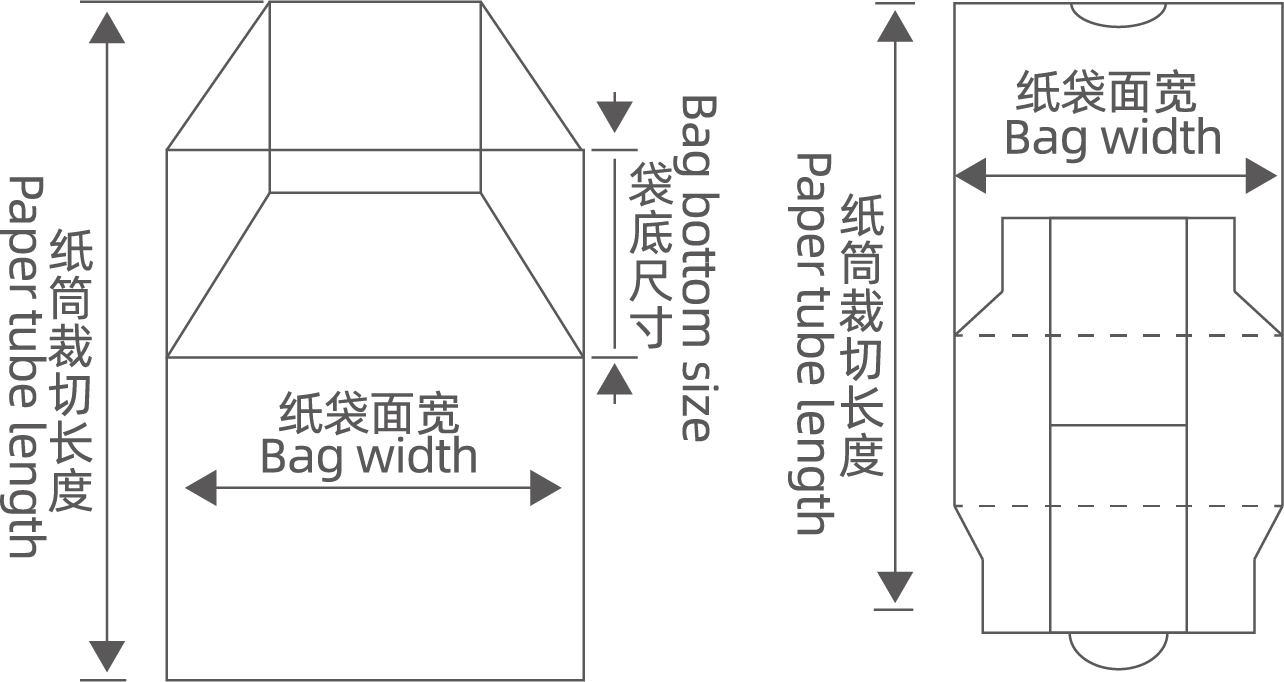

Bag Length

260-533mm

260-533mm

260-533mm

Bag Width

120-290mm

140-330mm

220-460mm

Bottom Size

60-180mm

60-180mm

60-180mm

Paper Thickness

60-150gsm

60-150gsm

60-150gsm

Maximum Roll Width

320-900mm

320-900mm

600-1300mm

Max Paper Roll Diameter

1300mm

1300mm

1300mm

Material Core Diameter

76mm

76mm

76mm

Max. Production Speed

200pcs/min

200pcs/min

180pcs/min

Total Power

12kw

12kw

15kw

Machine Weight

8500kg

9000kg

10000kg

Machine Size (LxWxH)

9200x2500x1800mm

9200x2600x1800mm

9200x3000x1800mm

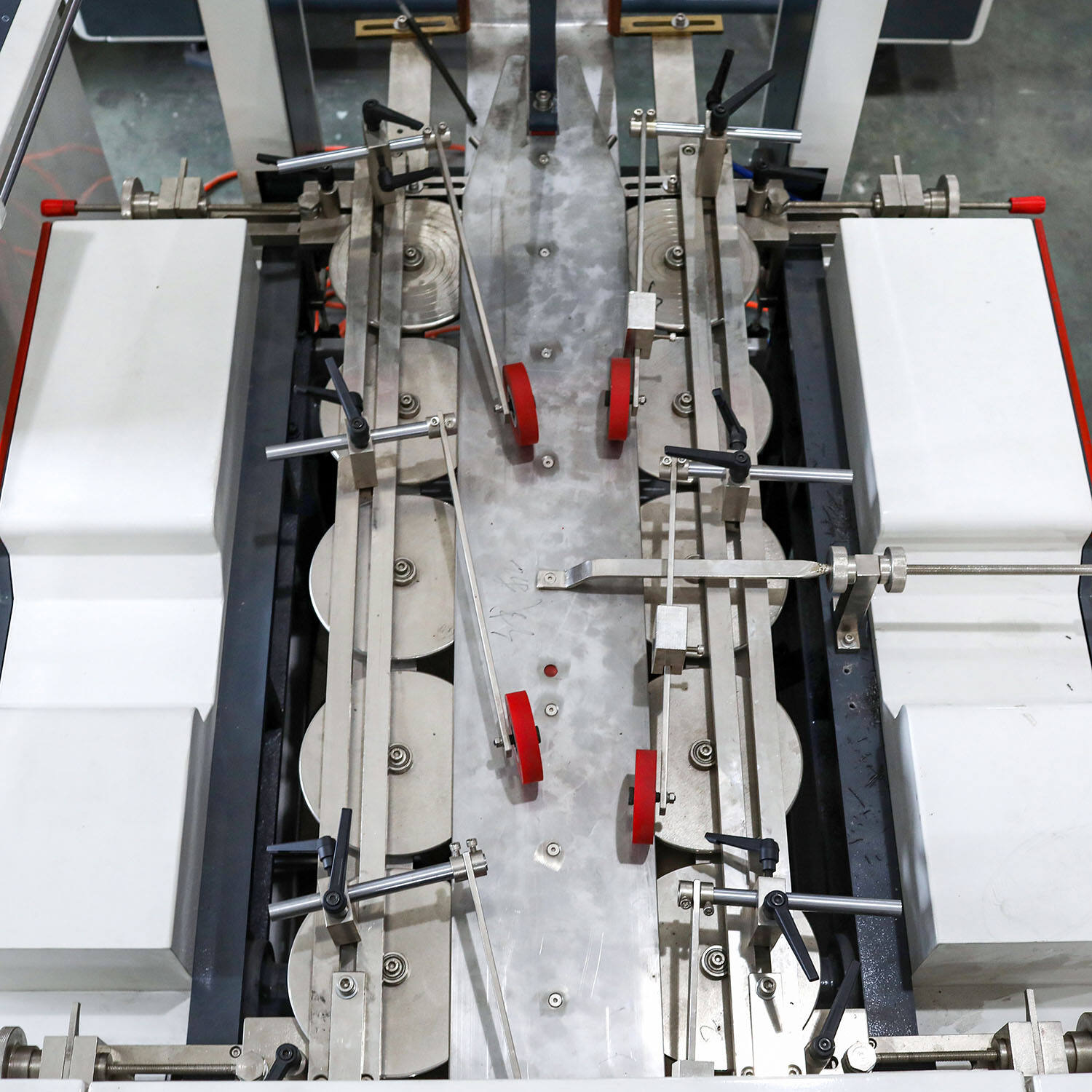

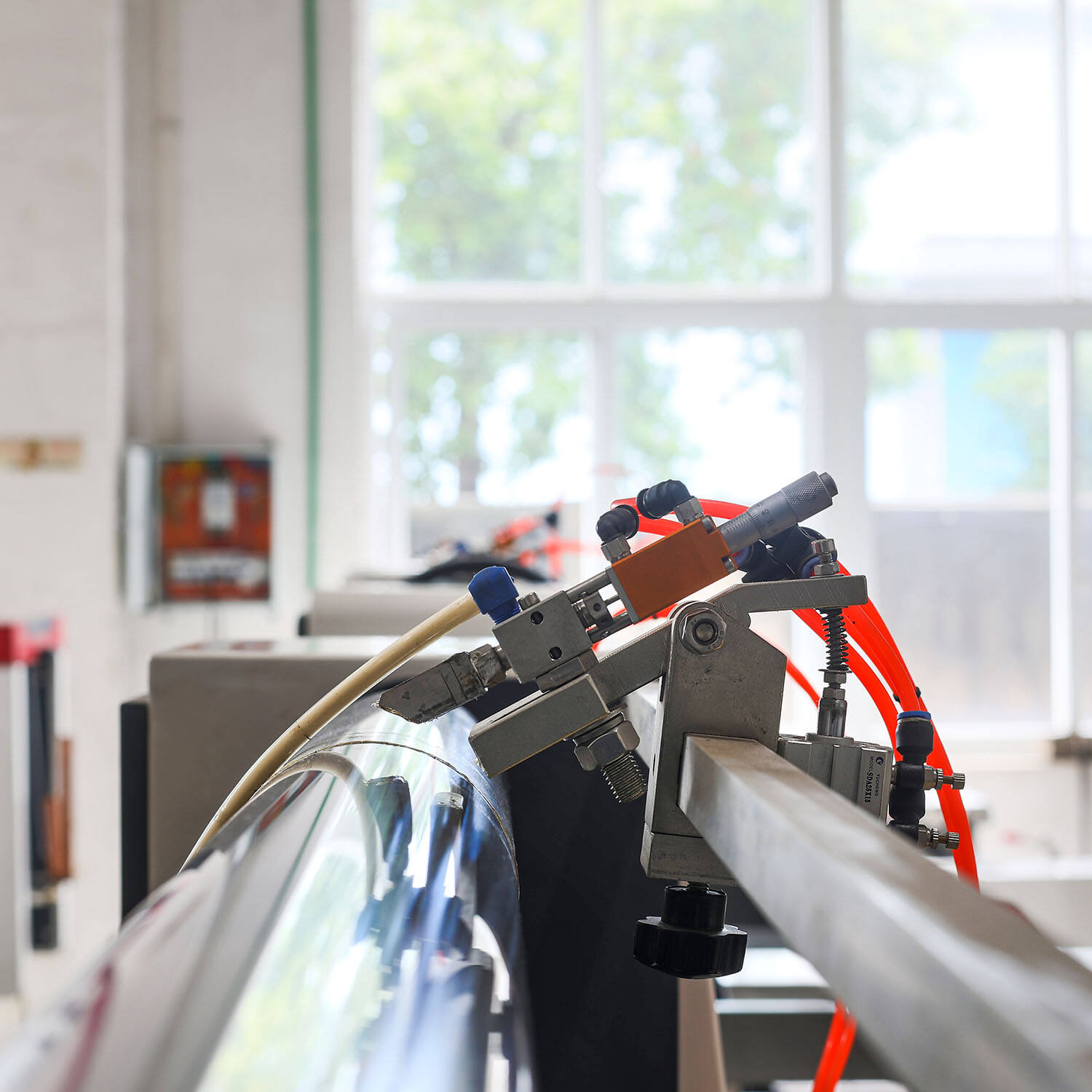

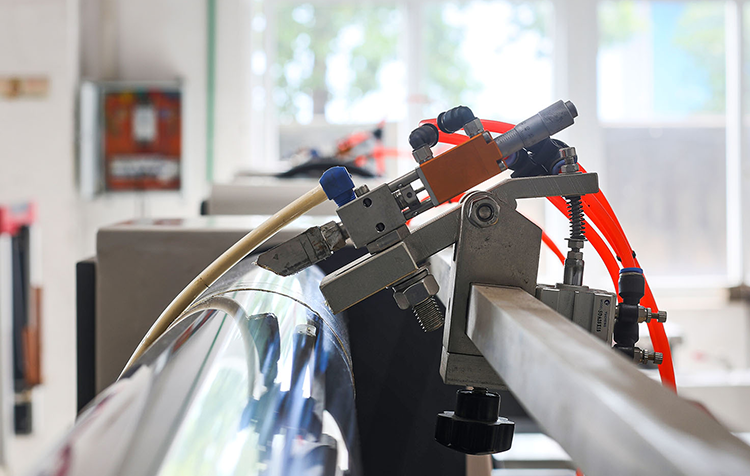

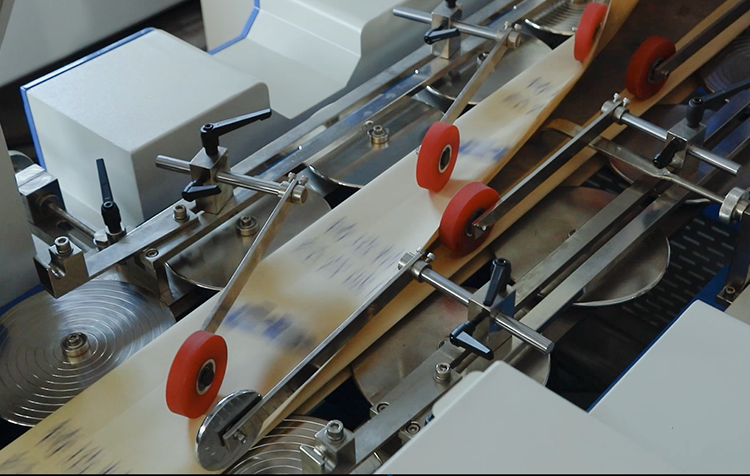

1.Feeding Section.png 2.glue gun.png 3.Computer.png 4.Inserted Edge Wheel and Plug Side Dish.png

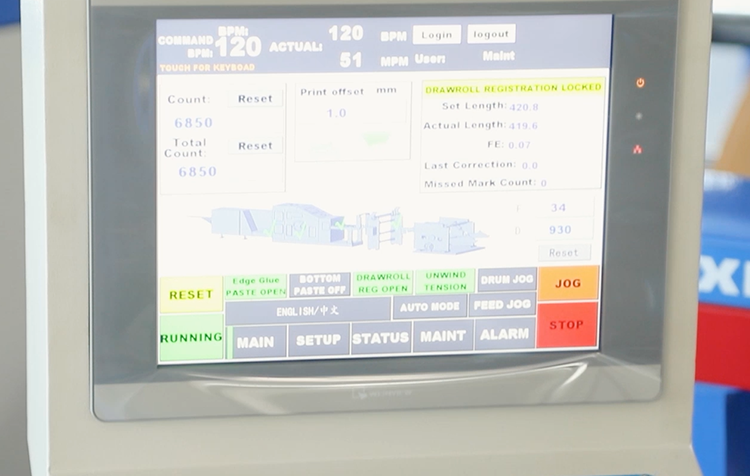

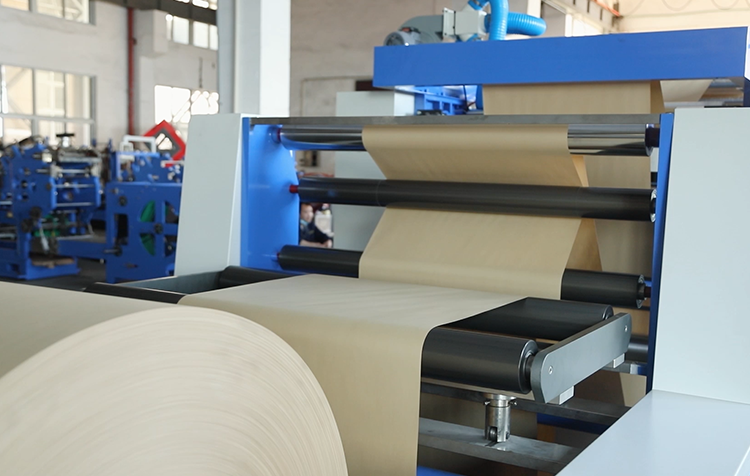

Feeding Section glue gun Computer Inserted Edge Wheel and Plug Side Dish

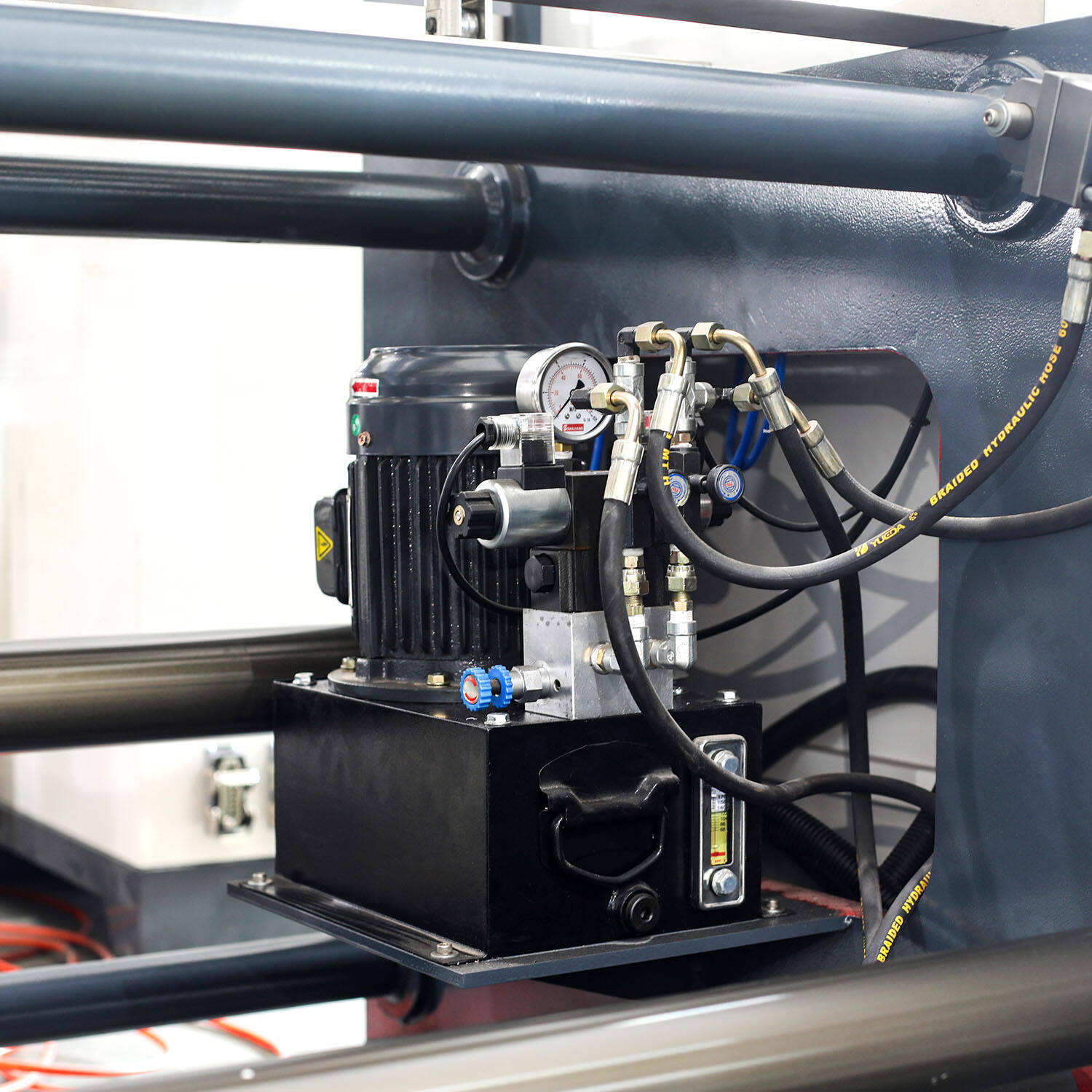

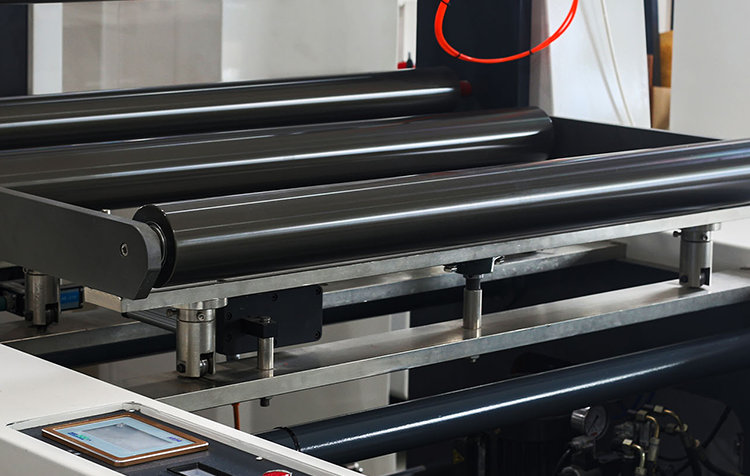

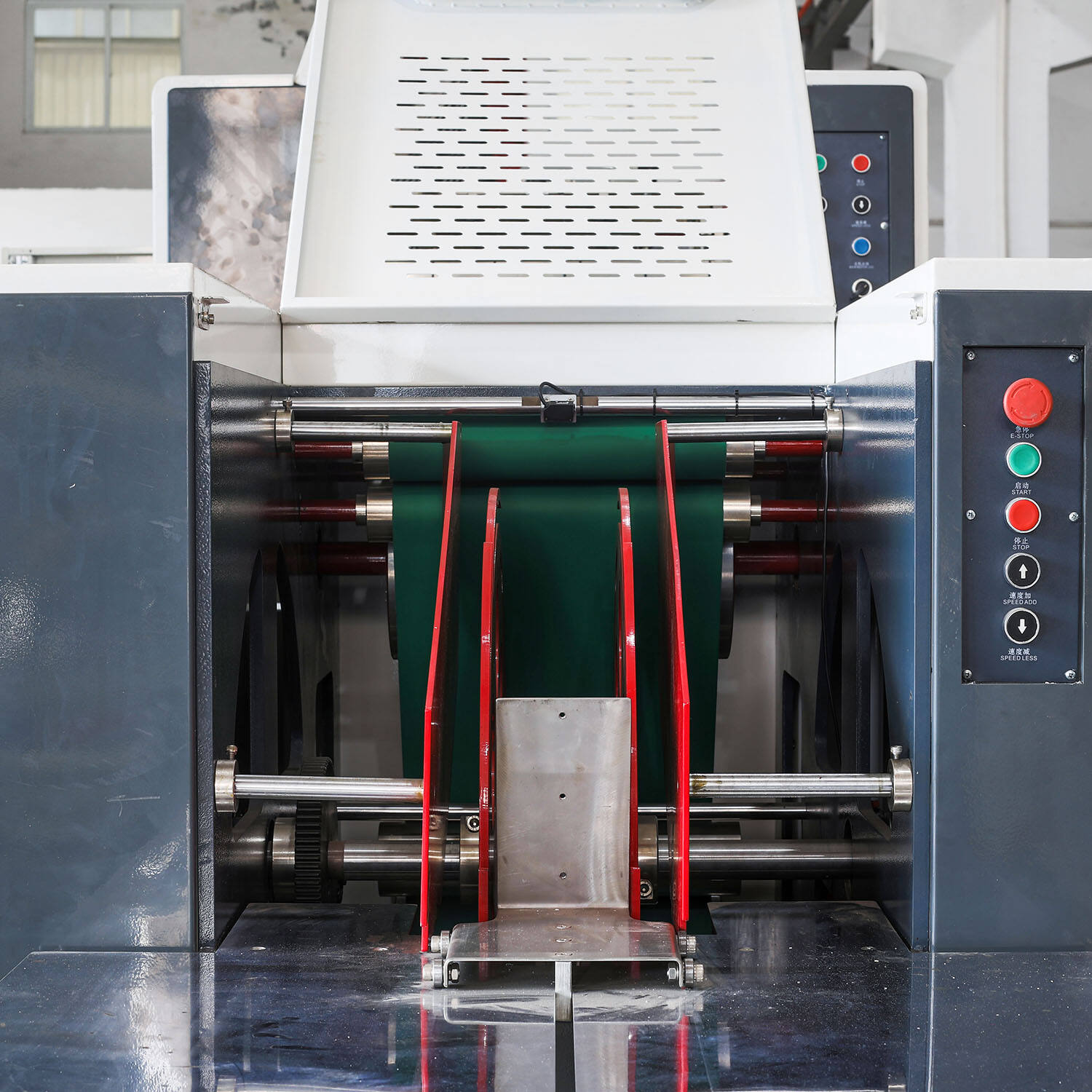

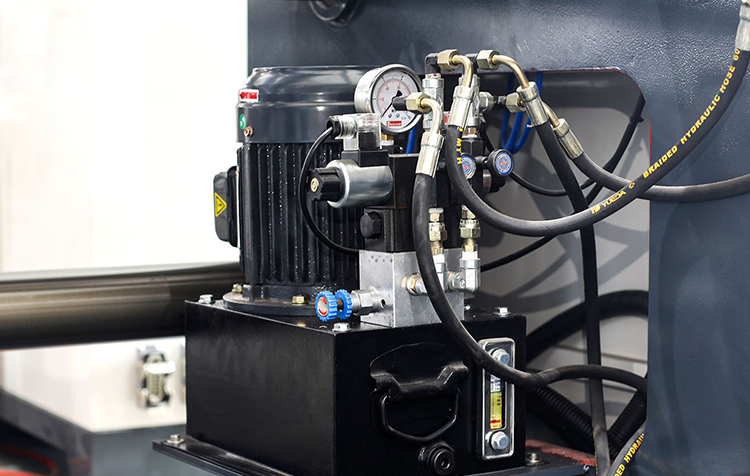

5.hydrualic pump.png 6.Bag Bottom Closure Device.png 7.Receive Bag Part.png 8.EPC(Optional).png

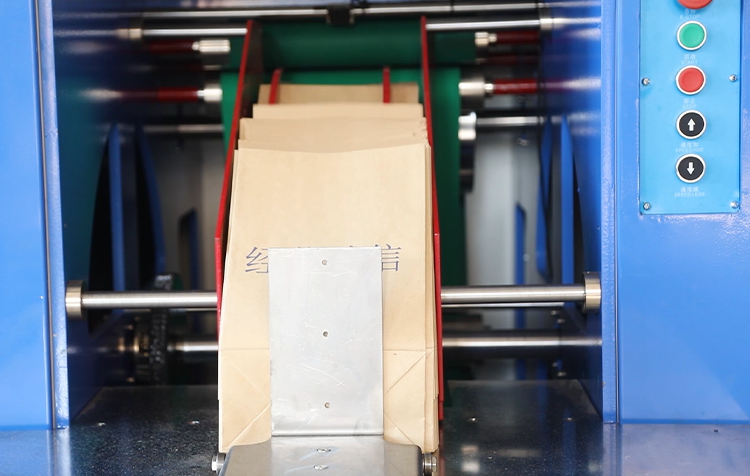

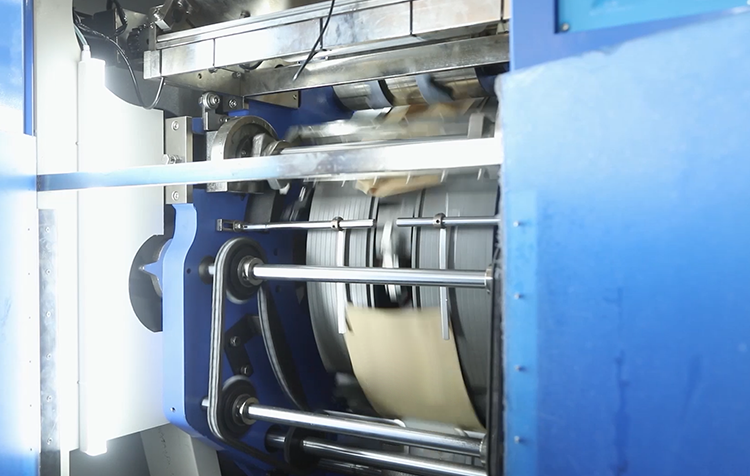

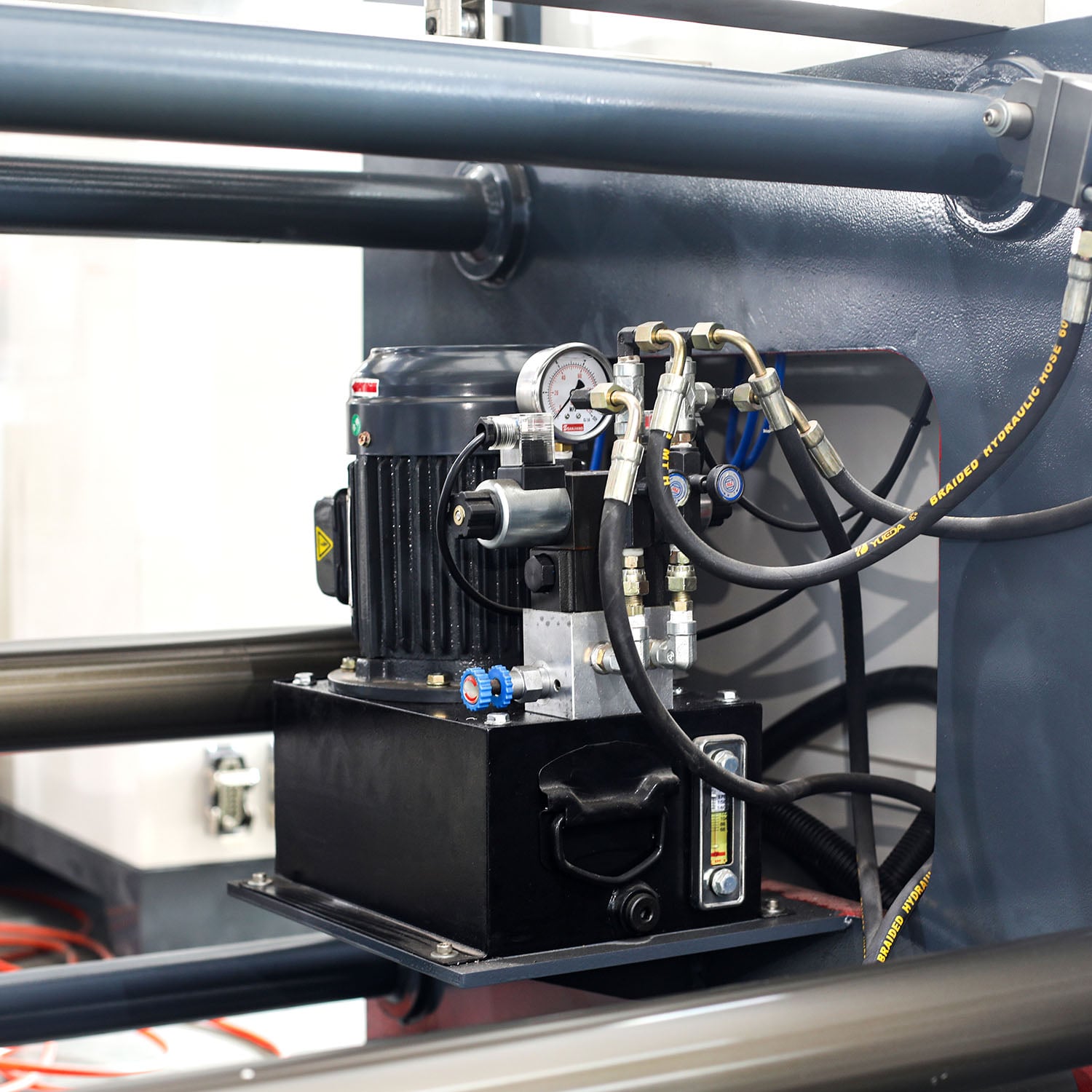

hydrualic pump Bag Bottom Closure Device Receive Bag Part EPC(Optional)

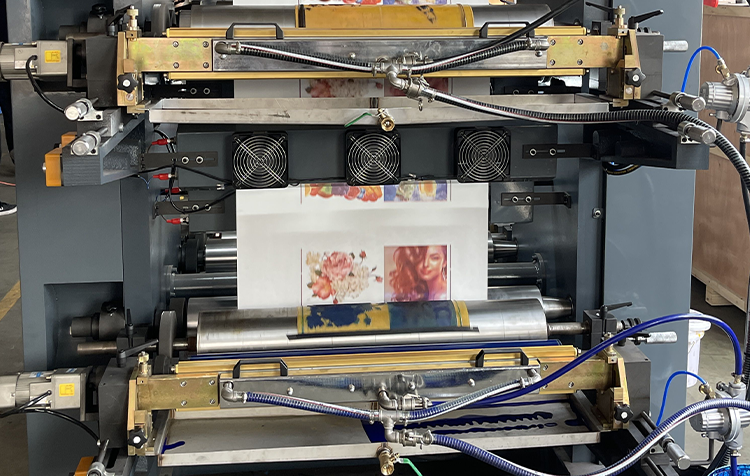

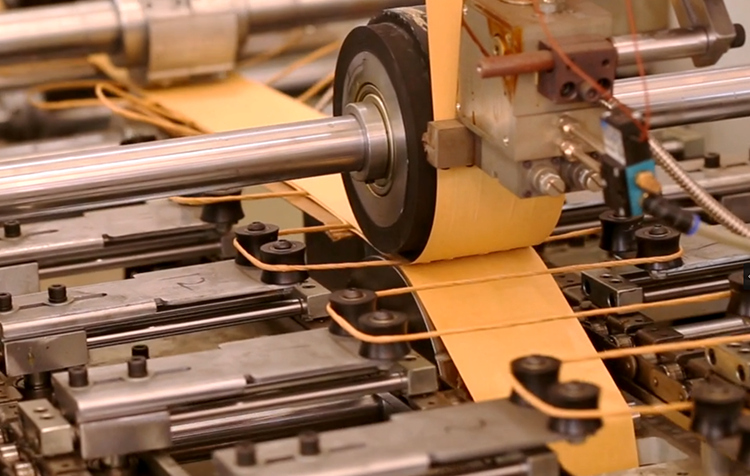

9.Printing Machine(Optional).png 10.Handle Making Unit (Optional).png
Printing Machine(Optional) Handle Making Unit (Optional)

1. Use hydraulic lifting for material handling, and automatic tension control system for unwinding,2. Side gluing uses ltaly ZATOR.

3. Automatic error correction uses ltaly SELECTRA.

4. Paper tube forming device with thumb-cut fuction.

5. Automatic stop for having no material.

6. Center clip, drum wheel clamp and drum wheel machanical finger are all use spider synchronous adjustment mechanical design, which can significantly reduce the adjustment time for replacing size.

7. Use German KEB servo with SlCK photoelectric eye, which can accurately tracking the printed material.8. Equipped with automatic lubrication supply system and jams alarm system.

1.Q: is your factory a trading company or a factory?

A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?

A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?

A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.

The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?

A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
